Picture this scenario. Your engineering team has just finalized the CAD model for a groundbreaking new centrifugal pump volute. You need 50 fully functional units on your desk by next Tuesday for rigorous field testing. Engineers, industrial designers, and product managers face this critical manufacturing dilemma daily. Choosing the most cost-effective manufacturing method without sacrificing mechanical integrity is a high-stakes decision.
While both additive and subtractive manufacturing are established industry standards, their underlying pricing models are fundamentally different. Selecting the wrong production method for a specific part will rapidly deplete a project budget and cause severe timeline delays. I have seen projects bleed thousands of dollars because someone chose a 5-axis mill for a complex fluid routing enclosure that could have been printed overnight for a fraction of the cost.
This comprehensive guide breaks down the exact cost factors associated with both technologies. From initial engineering setup and raw material consumption to production volume and geometric complexity, understanding these variables is essential. Partnering with a reliable manufacturing service requires a deep understanding of how your design choices directly dictate the final quotation. By analyzing the mechanics of cost generation, this guide equips you with the engineering insights needed to optimize your manufacturing budget effectively.
Technology Economics: Additive manufacturing offers unmatched cost-efficiency for low-volume production runs, highly complex internal fluid channels, and rapid iterative prototyping.
Volume and Precision: Subtractive manufacturing dominates cost-efficiency for higher production volumes, parts requiring exceptionally tight tolerances like plus or minus 0.01mm, and heavy-duty metal components.
The Complexity Factor: Geometric complexity incurs almost zero additional cost in additive processes. In contrast, intricate designs significantly inflate machining time, custom tooling requirements, and overall costs in subtractive operations.
Engineering Preparation: Proper digital file setup and accurate engineering documentation are crucial preliminary steps. These directly impact your final manufacturing quote and dictate the success of the production run.
Before diving into the technical breakdown, we must look at current global manufacturing trends. Supply chain volatility over recent years has fundamentally shifted how hardware teams evaluate production costs. There is a massive industry-wide pivot toward hybrid manufacturing. Hardware startups and established industrial players are moving away from defaulting to milling for every component. Rising raw metal costs and unpredictable overseas shipping delays make localized additive manufacturing highly attractive for bridge production.
Furthermore, as industrial 3D printers achieve better isotropic properties and tighter dimensional accuracy, the traditional boundaries between prototyping and end-use production are blurring. However, for critical load-bearing applications requiring specific aerospace-grade alloys, subtractive methods remain indispensable. The cost intersection point between these two technologies is constantly shifting. Smart procurement teams now leverage both methods simultaneously to balance speed, cost, and mechanical performance.

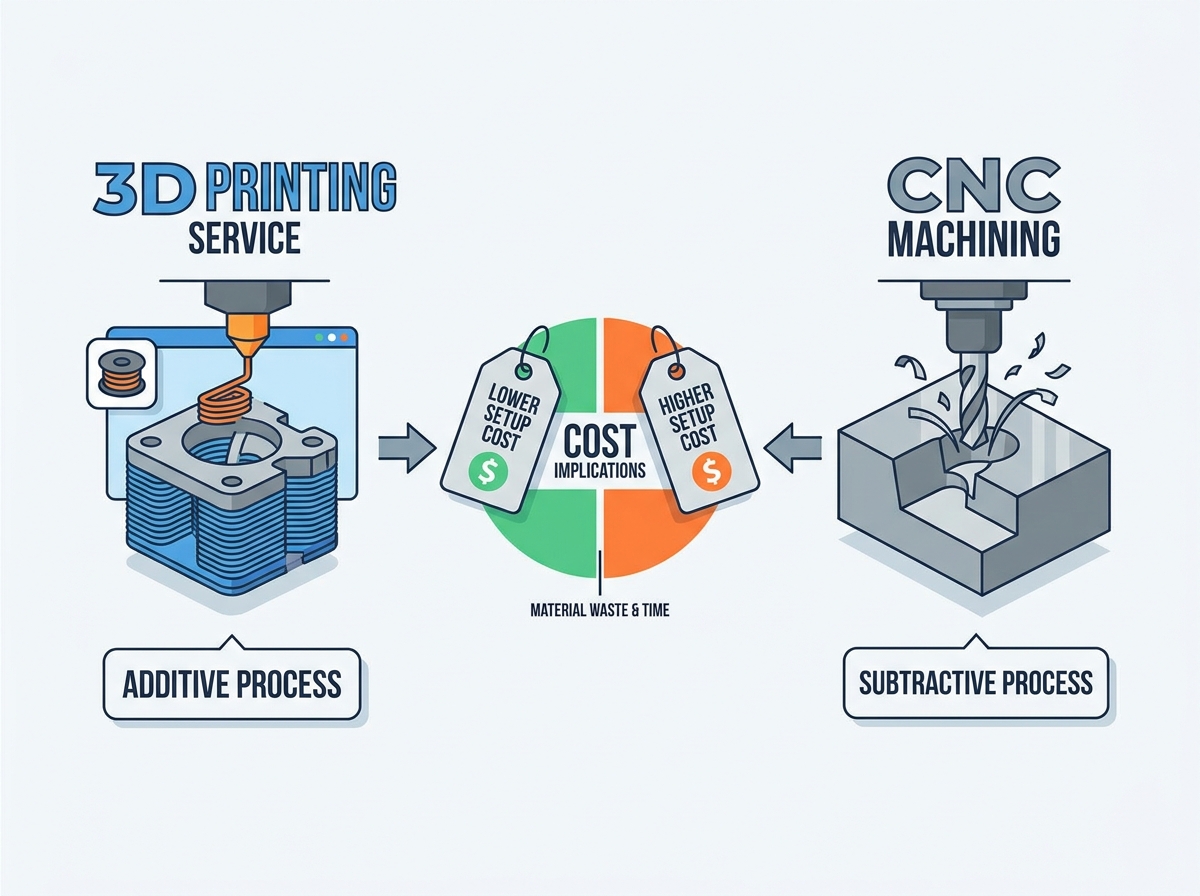

To accurately evaluate manufacturing expenses, you must first grasp the physical differences between the two primary processes. The specific way a part is physically formed dictates how machine runtime, material waste, and operator labor translate into the final price.
Additive Manufacturing: This process builds parts by adding material one microscopic layer at a time. Technologies such as Fused Deposition Modeling and Stereolithography operate on this core principle. A digital model is mathematically sliced into hundreds of horizontal cross-sections, often with layer thicknesses ranging from 0.05mm to 0.1mm. The machine then deposits or cures material exclusively where it is required. Because the hardware only processes the material that constitutes the final part, the methodology is highly efficient regarding raw material utilization. The primary cost drivers here are the bounding volume of the part, the specific engineering resin or filament used, and the total print duration.
Subtractive Manufacturing: Computer Numerical Control machining operates on the exact opposite principle. Manufacturing begins with a solid block, billet, or rod of raw material. High-speed, computer-controlled cutting tools systematically carve away unwanted material until the final desired geometry is revealed. Because the physical process involves aggressively cutting through solid matter, the cost drivers scale entirely differently. The primary expenses are derived from the time required to program the tool paths, the physical time the spindle spends cutting, tool wear, and the sheer volume of material discarded as metal chips.
In professional manufacturing environments, the financial clock begins ticking long before the machines are powered on. The engineering time required to transition a digital CAD model into a physical manufacturing program represents a significant portion of the upfront setup costs. These Non-Recurring Engineering fees often dictate the financial viability of a short production run.
One of the primary economic advantages of utilizing an additive approach is the relatively low barrier to entry regarding setup labor. When you submit a model to a production facility, the software processing is heavily automated. Specialized slicing software analyzes the geometry, calculates the necessary support structures, and generates the machine code with minimal human intervention.
However, engineering is not entirely absent. Proper 3D printing CAD file preparation remains a vital step to avoid failed prints and wasted capital. Engineers must ensure that the digital mesh is completely watertight. They must verify that wall thicknesses meet the minimum requirements for the chosen polymer and orient the part optimally to balance mechanical strength and surface finish. Despite these strict requirements, the manual labor involved is typically measured in minutes rather than hours. This lack of heavy upfront engineering is precisely why additive manufacturing dominates the market for single-unit prototypes.
Setting up a milling or turning center is a highly manual, labor-intensive process requiring specialized engineering expertise. A machine operator cannot simply upload a 3D model and press a button. A CAM programmer must meticulously define the cutting strategy. They must select the appropriate end mills, calculate optimal spindle speeds, and design custom workholding solutions such as soft jaws to secure the raw material block during aggressive cutting operations.
Specifically, this workflow relies heavily on detailed documentation. Machinists require comprehensive CNC machining prototype drawings to understand critical dimensions that cannot be inferred solely from a 3D model. These 2D drawings must explicitly state acceptable manufacturing tolerances, specify threaded hole parameters, and define required surface roughness values. The labor required to program the tool paths and physically set up the machine tools can take several hours. This intense preparation makes it highly cost-prohibitive for producing a single unit.
Raw material procurement and utilization represent the next major battleground in the cost comparison. How materials are priced, consumed, and ultimately wasted drastically affects the final quotation you receive.
When utilizing additive technologies, material efficiency is maximized. A standard printing service only consumes the exact volume of thermoplastic filament or photopolymer resin required to build the part, alongside a small margin for disposable support structures.
For common prototyping plastics, the material cost is highly predictable and relatively low. Even when utilizing advanced engineering resins designed for high-temperature fluid applications, the expense is strictly tied to the actual volume of the part. Because there is virtually no wasted material, the raw material cost remains a linear and predictable variable. You are essentially only paying for the mass of the final product sitting in your hand.
Subtractive manufacturing presents a completely different economic reality. Because the process requires cutting away material, the manufacturer must purchase a solid blank that is significantly larger than the maximum dimensions of the final part. Picture a solid block of Aluminum 6061 clamped in a vise. Everything that does not look like your final part must be turned into scrap.
This buy-to-fly ratio is a critical cost driver. If you are machining a complex, hollowed-out pump impeller from aerospace-grade Titanium or 316L Stainless Steel, you may end up machining away 80 percent of the material you purchased. While some metal scrap can be recycled, its resale value is a fraction of the raw billet cost. The expense of that wasted premium metal is passed directly onto the customer.
Perhaps the most significant differentiator in pricing between these two technologies is how they handle geometric complexity. In the hardware manufacturing industry, there is a well-known axiom. In additive manufacturing, complexity is virtually free. In subtractive manufacturing, complexity costs money.
Because additive machines build parts layer by layer, the print head or laser does not care how complex the cross-section is. Creating a solid cube takes roughly the same amount of effort as creating a complex, organic lattice structure of the exact same bounding volume. This makes technologies like Stereolithography ideal for producing incredibly intricate designs, such as conformal cooling channels or organic topologies that would be physically impossible for a standard cutting tool to reach.
To control costs effectively, there are strict SLA prototype design requirements that must be adhered to. For example, hollow parts must be designed with escape holes to allow uncured liquid resin to drain out. Otherwise, the trapped resin adds unnecessary weight and inflates the material cost. Additionally, designing parts with self-supporting angles minimizes the need for sacrificial support structures, thereby reducing both material consumption and manual cleanup labor.
The approach to achieving mechanical strength also differs wildly. In subtractive manufacturing, parts are inherently solid. If a mechanical engineer wants to reduce the weight of a milled part, the machine must spend extra hours milling out deep pockets. This dramatically increases the machine runtime and the final cost.
In contrast, leveraging rapid prototyping structural design in additive manufacturing utilizes intelligent internal geometries to save money. Instead of printing a part completely solid, slicing software generates internal infill patterns such as honeycomb or gyroid structures. These infill patterns provide excellent structural integrity while leaving the interior largely hollow. This strategic approach significantly reduces the volume of material consumed and drastically decreases machine runtime.
Manufacturing Feature | Additive Manufacturing | Subtractive Manufacturing |
|---|---|---|
Upfront Setup Cost | Very Low. Minimal programming required. | High. Requires CAM programming and custom fixturing. |
Geometric Complexity | Free. Ideal for internal channels and lattices. | Expensive. Increases machining time and tooling costs. |
Material Waste | Minimal. Consumes only what is printed plus supports. | High. Significant material is milled away as scrap. |
Typical Tolerances | Standard plus or minus 0.1mm to 0.2mm. | Ultra-precise up to plus or minus 0.01mm. |
Volume Sweet Spot | 1 to 50 units. Perfect for rapid iteration. | 100 plus units. Setup costs amortize efficiently. |
The most cost-effective manufacturing method is highly dependent on the number of units required. Economies of scale affect these technologies in fundamentally different ways.
Prototyping Phase for 1 to 10 units: For single prototypes or very small batches, an additive service almost always wins on price. The absence of custom fixtures, CAM programming, and tooling means the first part costs roughly the same as the tenth part.
Bridge Production Phase for 10 to 100 units: This is the transitional zone. As the quantity increases, the high initial setup cost of milling is amortized across a larger number of parts. If the part geometry is relatively simple, subtractive methods may begin to match or undercut additive prices in this tier.
Low-Volume Manufacturing Phase for 100 plus units: At higher volumes, subtractive manufacturing generally overtakes additive processes in cost-efficiency. Once a milling center is programmed and set up, it can produce parts rapidly and continuously. Additive processes, limited by the physical speed of layer deposition, struggle to achieve the same per-part time reduction at scale.
Buyers often base their decisions solely on machine time and material. They frequently overlook the critical expenses incurred after the machine stops running. Post-processing and precision requirements can substantially alter the final invoice.
While the creation of an additive part is automated, post-processing is often highly manual. Parts may require technicians to manually break away support structures, wash the components in isopropyl alcohol, cure them in UV chambers, and perform manual sanding to achieve a consumer-ready finish. This manual labor adds a hidden premium to the final cost.
For subtractive processes, the hidden costs lie in extreme precision. Standard machining tolerances such as plus or minus 0.125mm are relatively fast to achieve. However, if an engineering drawing specifies exceptionally tight tolerances such as plus or minus 0.01mm or a mirror-like surface finish, the machinist must program slower and finer cutting passes. This dramatically increases the time the part spends inside the machine, directly inflating the hourly operational costs.
To synthesize the cost drivers discussed above, project managers can use the following objective criteria to determine the most cost-efficient path for their specific application.
Choose Additive Manufacturing when:
You require a small batch of prototypes for immediate form, fit, or fluid dynamic testing.
The design features complex internal cooling channels, organic geometries, or consolidated assemblies.
You need to strictly minimize initial upfront engineering and tooling costs.
The component can be optimized using sparse internal infill to save weight and reduce material consumption.
Choose Subtractive Manufacturing when:
The application demands exceptional structural integrity, isotropic material properties, or specific high-performance metal alloys like 316L Stainless Steel.
The engineering drawings require strict, repeatable tolerances for mechanical mating surfaces and bearing presses.
You are scaling up production past the 100-unit threshold, allowing expensive setup costs to be effectively amortized.
The part geometry is relatively simple, blocky, and allows for straightforward cutting tool access.
Neither manufacturing method is universally the cheapest option. Your final costs depend entirely on a delicate engineering balance of volume, material selection, part complexity, and required tolerances. Evaluating your specific project requirements carefully before deciding is the only proven way to protect your budget.
Optimizing your designs to control manufacturing expenses is an ongoing engineering process. Whether you are mastering digital file preparation to prevent failed prints or simplifying geometries to reduce machining time, thoughtful engineering always pays off. Stop guessing and start optimizing. If you are ready to transition your CAD models into high-quality physical components, explore the professional manufacturing solutions available at https://www.ballgarii.com. Their technical team can help you navigate these complex cost variables and select the perfect technology for your specific hardware requirements.
No. While additive processes are almost always cheaper for single prototypes and highly complex geometries due to low setup costs, subtractive machining becomes significantly more cost-effective for larger production runs and simpler designs where initial setup fees can be amortized over hundreds of units.
For metals, Aluminum 6061 is generally the most cost-effective option due to its excellent machinability, which reduces tool wear and machine runtime. For plastics, materials like Delrin or ABS are highly affordable and machine very quickly, keeping overall production costs low.
The cost varies heavily based on size and technology. A basic structural prototype printed in PLA using Fused Deposition Modeling can cost anywhere from 10 to 50 dollars. High-precision resin prints or industrial-grade materials will cost more, typically ranging from 50 to a few hundred dollars depending on the bounding volume.
You can effectively reduce costs by hollowing out your solid models, reducing the internal infill density, and minimizing the need for overhanging support structures. Ensuring your digital files are properly optimized and watertight before requesting a quote will also prevent unnecessary engineering fees.
Yes, significantly. Designing for additive processes often utilizes lightweight internal infill patterns and avoids steep overhangs to save material. Conversely, designing for subtractive processes focuses on avoiding deep internal pockets, eliminating sharp internal corners, and minimizing the number of times the raw block needs to be repositioned in the machine vise.
Key requirements include maintaining minimum wall thicknesses usually around 0.6mm to 1mm depending on the specific resin. You must also add escape holes for hollowed parts to allow uncured liquid to drain. Designing self-supporting angles greater than 45 degrees where possible will drastically reduce the reliance on sacrificial supports.
